i-TEK Vitthal Board: Radio Module Agnostic Reader

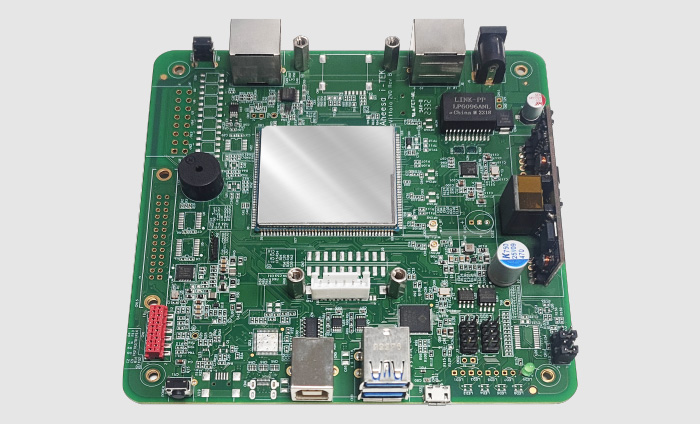

i-TEK Vitthal Board

i-TEK proudly presents the Vitthal Board, a robust and cost-effective alternative to traditional RFID readers. This innovative solution offers unparalleled flexibility, allowing most reputed RFID modules to be seamlessly integrated. As a 100% Made-in-India product, the Vitthal Board has established itself as a reliable choice for various industries.

  • Compatible with multiple RFID modules from leading manufacturers
  • Cost-effective solution without compromising performance
  • Robust design for reliable operation in diverse environments
  • Ideal for manufacturing, logistics, and retail RFID applications
  • CPU: Octa Core Cortex A53 64bit
  • Operating System: Android 10
  • Support for Wi-Fi: IEEE 802.11b/g/n/ac Dual Band and Bluetooth 4.2
  • Support for Mobile Network: TDD-LTE, FDDLTE, TD-SCDMA, WCDMA, EVDO, CDMA and GSM
  • Support for GNSS: GPS/BeiDou/GLONASS/Galileo
  • Gigabit Ethernet over USB with RJ45
  • Dual role USB OTG
  • 1080p Video output over micro-HDMI
  • RS232 debug console port
  • Micro-B USB connector for Host interface
  • Multi colour LED for indication
  • SD Card: x1 Support SD 3.0, 4-bit SDIO
  • Max DRAM up to 4GB LPDDR3
  • Max Storage up to 64GB eMMC
  • Built in RTC
  • HID USB port to enumerate as Human Interface Device to Host device.
  • 16 GPIO’s on IDC connector 3.3V I/0
  • Optically isolated 4 GPI, 4 GPO’s
  • External Antenna for GPS, LTE and WLAN
  • 2x USB 3.0 connectors
  • Buzzer – On board actuator
  • 2.5W Audio Amplifier with 4Ω speaker support.
  • Device powered through POE / DC power adapter. Power Over Ethernet (PoE): Supports IEEE 802.3af (Type I) and IEEE 802.3at (Type II) Power consumption: Class 3 DC power adapter: 12V @2A
  • Temperature range Operating -20 °C to +60 °C and Storage -40 °C to +85 °C
